Product Details

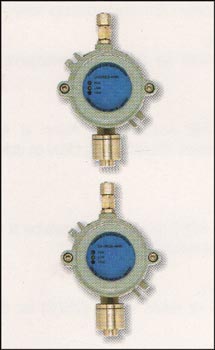

Flammable Gas Leak Detector

Flammable Gas Monitoring System is a novel state of the art leak detection system. Designed for permanent installation, the unit is able to monitor the presence of combustible gases such as LPG, CNG, LNG etc. in a variety of applications.

Microprocessor based system with in-built self-test facility & RS 485 digital data communication link.
CMRI / CCOE certified Gas Leak Detector heads continuously monitors the presence of flammable gases.
Local & an optional Remote Alarm Indicator console provides audio-visual alarm status from all detector heads.
Relay output for automatic activation of exhaust fan, hooter, solenoid valve etc.
Alarm acknowledgement / reset and mute keys on both local and remote consoles.

Detector Heads & Alarm Indicator Console Each console can handle up to 10 detector heads
Display Power ON Indicator LED for each detector head.
Function Keys      Membrane switch for alarm acknowledgement & mute
Alarms Visual & 107dB Audio Hooter Alarm at Alarm
Indicator Consoles. Visual flashing LEDs on detector
Relay Output Potential Free SPDT relay contact provision at local
and remote Alarm Indicator Consoles
Power supply 230 VAC, 50 Hz mains supply (SMPS) for digital
Self Test Pre-programmed 'self test' checks sensor integrity,
alarm functions and system functioning
Size Detector heads: 110 mm diameter
  • Gas storage area
  • LPG Bullet & Banks
  • Plant Locations
  • Hotel Kitchens
  • Industrial Canteens
  • Gas Filling Stations
