Fixed Gas Detector

Digital Universal Gas Transmitter is a field mounted gas detector for the continuous monitoring of hazardous & combustible gases. It provides an industry standard 4-20 mA output signal that can be connected to any control system (DCS, PLC, etc.). It also provides RS-485 MODBUS-RTU digital output signal. It is available for a large variety of toxic and flammable gases such as Combustibles, Oxygen, Carbon Monoxide, Hydrogen Sulfide, Ammonia, Chlorine, SO2, NH3, HCN, HCL, NO2 etc

SPECIFATIONS:

Flamable Catalytic Bead Detector / Non Dispersive InfraRed Detector (NDIR)
Toxic Electrochemical
VOC       Photo  ionization Detector (PID)
Dimension 230MM*220MM*120MM, Weight-2.5 Kg (Approx)

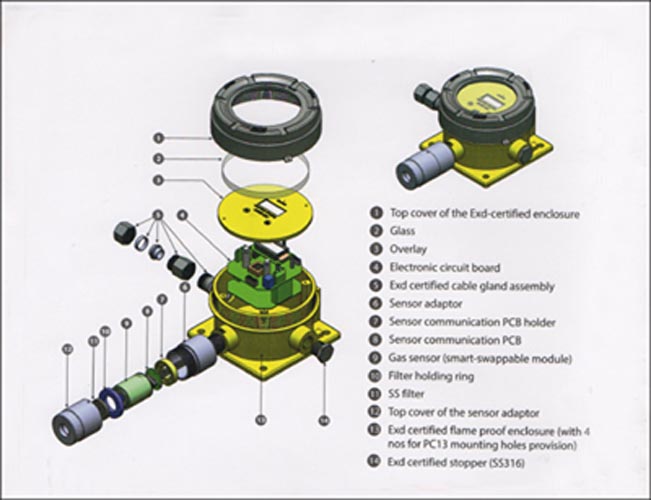

Enclosure & Mounting Flame proof, Cast Aluminum Alloy. Mounting on walls or poles or similar support
Operating Voltage & Power 18 to 28 VDC (Typically 24 VDC), Power-Less than 3 Watt.
Operating Temp -20 to 50 degree C
Operating Pressure & Humidity Ambient +/-10% and  0-95% RH (Non Condensing)
Output 4-20 mA and RS-485 (MOD-BUS)
Standards complied IS/IEC:60079-0:2004
IS/IEC:60079-1:2007
IP-IS/2063-1987(IEC60529:2001)
Certification CCOE & CIMER certified to Exd IIC, T6, IP66 (Cat No-UJB20130)
ATEXExII2GExdIICT6GbTamb-20 degree C to + 40 degree C, in process.


APPLICATIONS:

  • Refineries
  • Petrochemicals
  • Pharmaceuticals
  • Power Industries
  • Pollution control monitoring
  • Oil & Gas Industry.
